Cable Harness for Solenoid (511A0123-03)
M1173401
Respiratory Care
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Good Force Output
  • Low flux leakage
  • Low Operational Noise
  • Easy to connect connectors

Product Overview

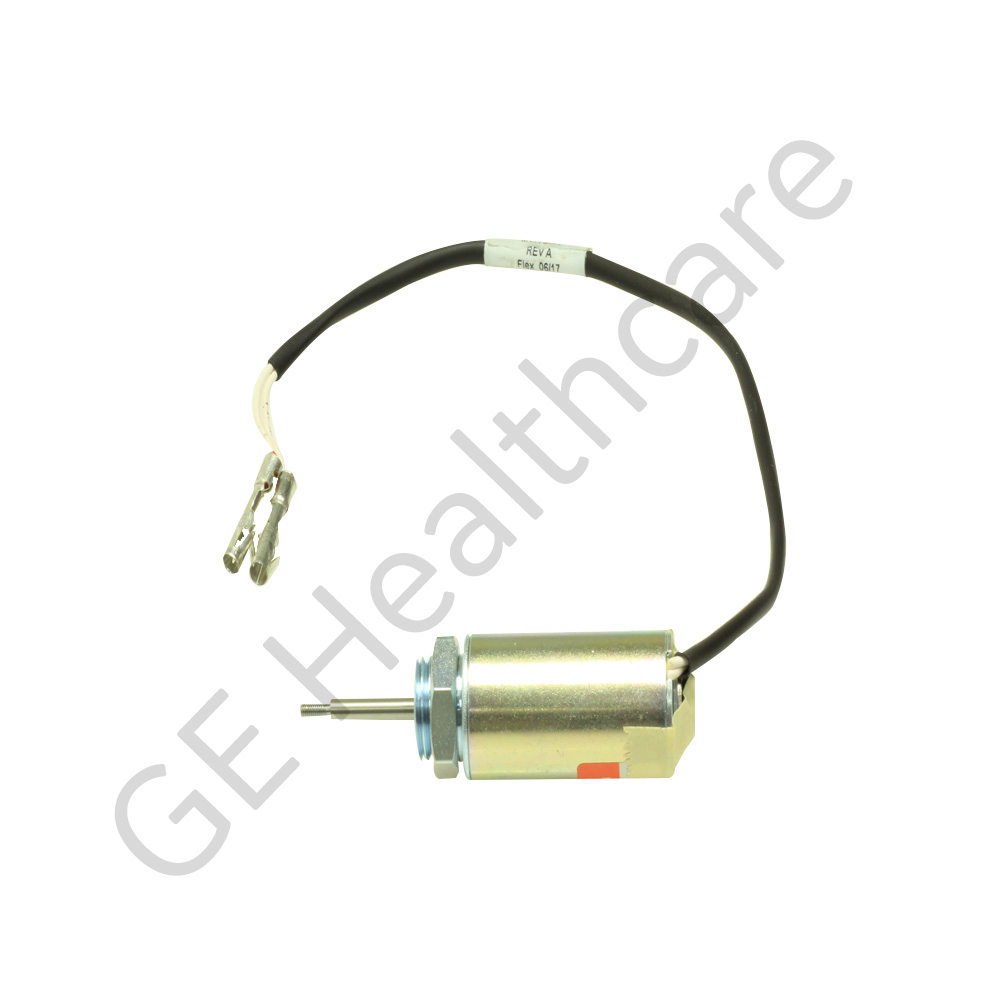

This Cable harness comprises of a tubular solenoid which is connected to two loose sockets using 260 mm long, 18 AWG, green/yellow wires. The solenoid structure consists of a slender cylinder with high permeable steel case, a modified plunger shaft. This tubular solenoid assembly comes with an air gap spacer installed between the plunger stopper and case which prevents the contact between plunger and base that avoids residual magnetism. This small size, light weight solenoid offers very good force output, minimum flux leakage and low operational noise. This solenoid can be connected to the system using the two connectors with tin plated contacts which offers good conductivity and sufficient corrosion resistance. This solenoid cable harness is carefully designed, properly insulated and protected using heat shrink to provide reliable operation and long service life. The cable harness comes with pre-labeled informations such as part number and date of manufacturing. This solenoid harness is compatible for use with different pneumatic modules of GE's Respiratory Care systems.

Compatible Products

iVent 201

iVent 201
