Power Assist Handle Assembly with Preamp Legacy 5443828-3

5443828-3
2143485
X-Ray
GE HealthCare
Exchange - Return Defective
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Easy to recognize and operate
  • Aesthetic in appearance
  • Does not contain sharp edges and corners
  • Durable and reliable

Other Buying Options


Product Overview

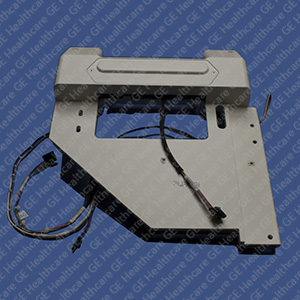

This assembly consists of a handle, pre-amp, housing, covers, exposure switch assemblies and hardware. The handle itself consists of a handle sleeve floating around a central stationary support into which hall effect sensors are permanently mounted (hall effect = N/S magnet passing by a transducer to provide a variable voltage output). Operator hand commands applied to the handle sleeve are mechanically transferred into the central handle mechanism and create push or pull forces on the force sensors. One hall effect sensor detects vertical forces (up and down) and a second hall effect sensor detects horizontal forces (left and right). Both of these sensor assemblies are aligned mechanically (forces applied to handle) and electrically (electrical output proportional to force applied) to obtain proper operation of the power assist system. Additionally, the handle provides separate banks of Fluoroscopy and Prep/Expose switches. These switches allow the common (+24VDC) to pass on to the system when they are depressed. This assembly can be used with 40CM ISFD system.

Substitute Parts :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
2143485
