AMX-4 Horizontal Arm Horizontal Lock

46-279098P1
X-Ray
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Heat Treated Stainless Steel Material
  • With tapered back
  • Good corrosion resistance
  • Machined Surface

Product Overview

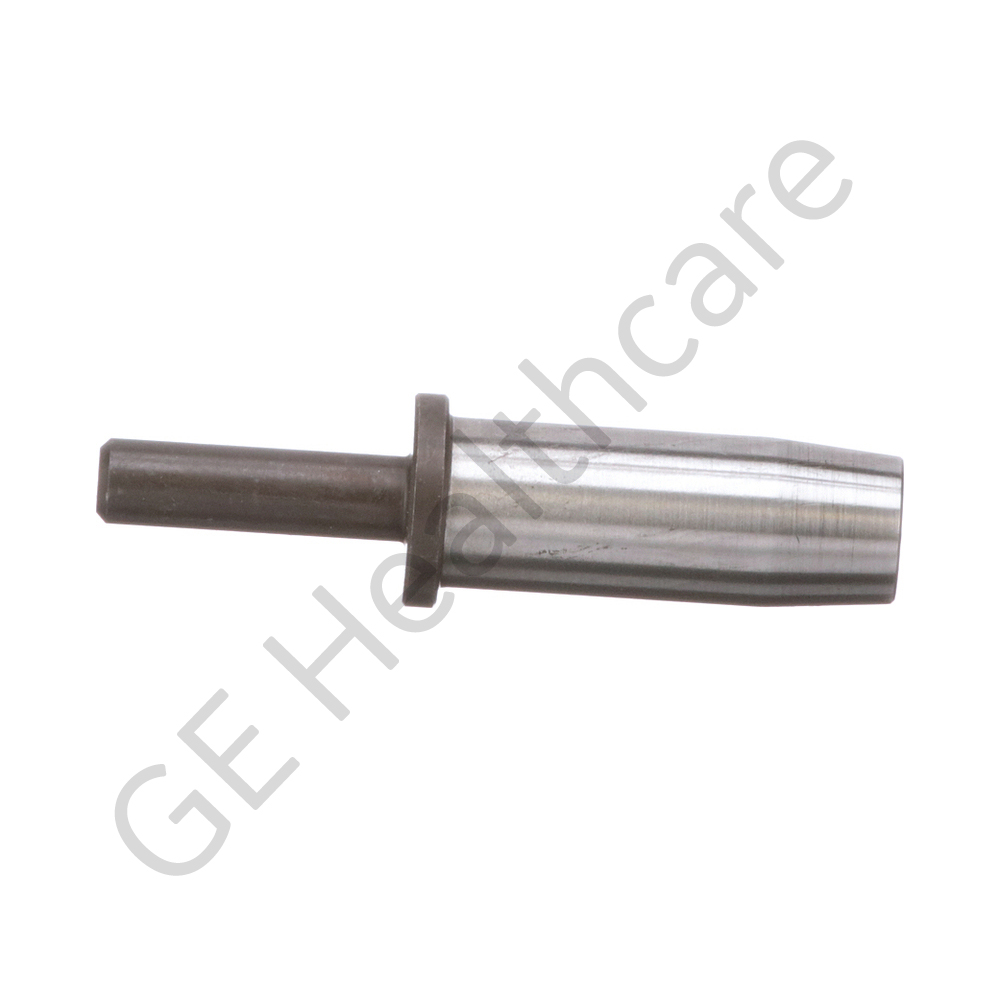

The locking pin is a cylindrical structure made up by machining process and are usually used for keeping two assemblies in place. The lock pin have different diameters at the front and back which are seperated by a 0.10 inch thick 0.635 inch diameter collar. This lock pin is made up of 440C Stainless Steel which is heat treated to RC 50-58. The rear part of the pin is tapered to 5 Degrees and has the required surface finish while the front pin has 0.03 inch X 45 Degree chamfered edges for easy placement and insertion. The heat treated stainless steel material provides good rigidness, tensile and ultimate strength to the material and its corrosion resistance properties helps in enhancing its service life. This pin is manufactured with fine tolerances and accuracy and is compatible to be used in the Horizontal Arm Assembly of GE's AMX 4 product line of X-Ray Modality.

Compatible Products

Definium AMX700

Definium AMX700
