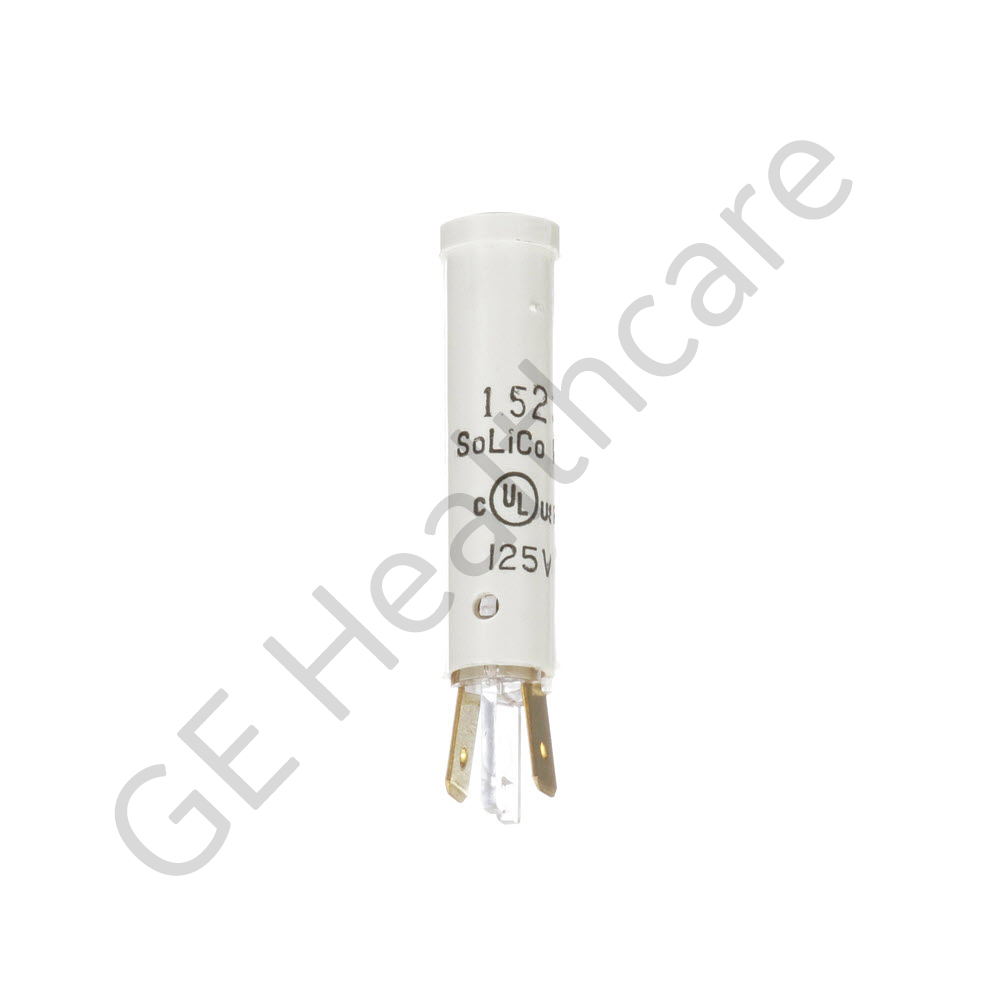

Lamp Assembly, Indicator 125V, 1/3 W

46-221914P4
X-Ray
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • High quality Lamp Assembly
  • Pressfit Neon indicator Light
  • 5/16 inch Diameter Mounting Hole
  • White Nylon Housing

Product Overview

The Lamp assembly or LED indicator is used for emiting a green 125 V light in a variety of situations. This green indicator light comes with a built-in resistor to control the LED current, so it does not need additional current limiting circuitry. It comes with three ribs spaced at 120 degree apart to each other for friction fit retention into the hole. Connections to the assembly can be made through provided 3/16 inch (0.187 x 0.020 inch) tab terminals, a tin plated terminal denotes anode terminal of LED while the brass terminal denotes cathode. The 1/3 watt LED indicator is enclosed inside a white nylon housing with polycarbonate lens. This LED indicator is compatible for use in DVP Chassis, AC Distribution Panel, and AVP Chassis assemblies of Definium AMX700 and Precision 500D systems.

Compatible Products

Precision 500D

Precision 500D

Robust, digital performance at an efficient dose
It starts with the imaging chain, which features a 12-bit CCD-based camera.Then there’s AutoEx, which automatically adjusts key image-acquisition parameters in real time for optimum quality. Meanwhile, closed-loop Automatic Brightness Control and patented extended Dynamic Range circuitry maintain contrast and minimize blooming.

Definium AMX700

Definium AMX700
