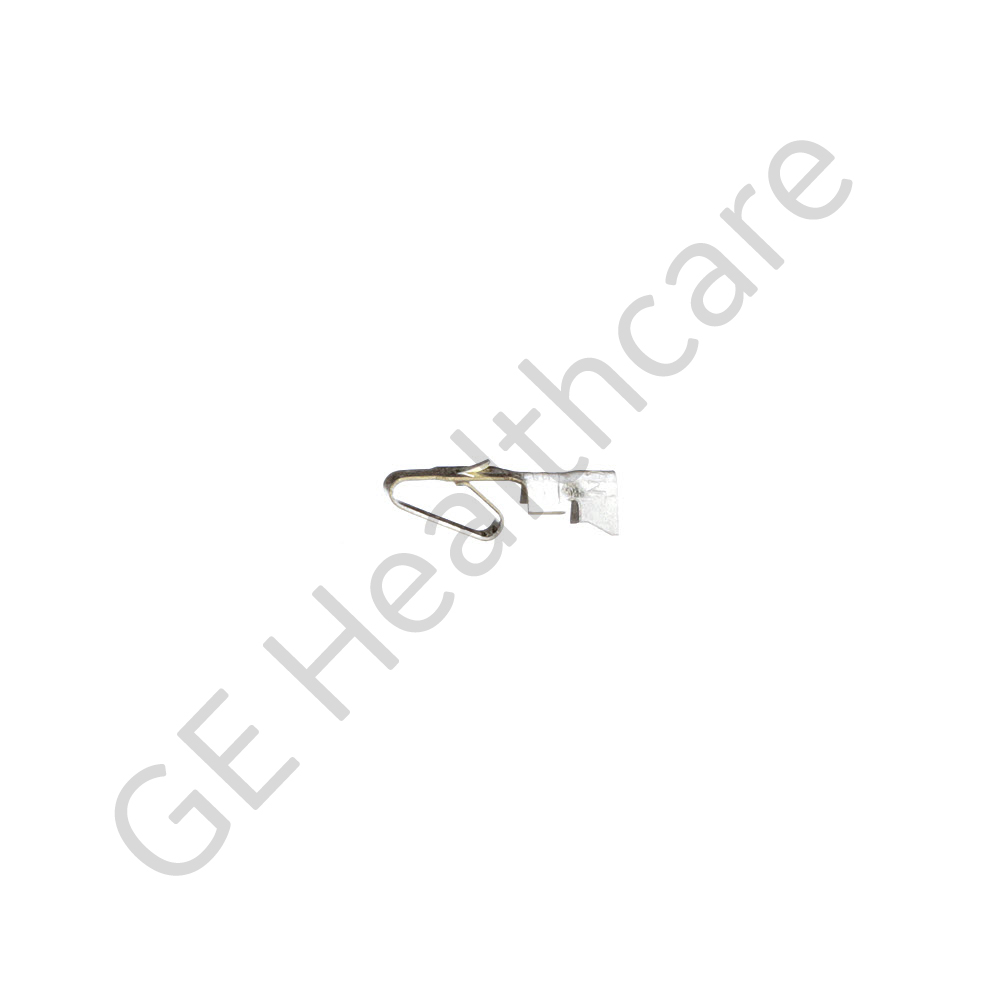

Female Crimp Terminal for Single-Sided Housing
46-220304P2 | |
X-Ray | |
GE HealthCare | Outright |
Enter your approval number and submit to add item(s) to cart.
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Select your approver's name and submit to add item(s) to your cart
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Friction lock headers and friction lock ramp housings
- Ensures secure mating
- Provides 180° C polarization
- Improved connectivity
Product Overview
The Crimp Terminals are solderless electrical components that allow to terminate stranded wire by inserting the wire into the terminal to establish quick and easy connection. This terminal is then compressed around the wire, therefore rendering it gas-tight. The Barrel-type crimp connections have an oval shape, whereas in open-barrel crimp connections, the section to be crimped has a V or U shape. A terminal is the point at which a conductor from an electrical component, device or network comes to an end and provides a point of connection to external circuits. A terminal may simply be the end of a wire, or it may be fitted with a connector or fastener. The connection may be temporary, as seen in portable equipment, may require a tool for assembly and removal or may be a permanent electrical joint between two wires or devices. The crimp terminals allow the wires to be easily terminated to screw terminals, quick-disconnect/spade-foot/fast-on type terminals, wire splices and various types of combinations. The particular crimp terminal is manufactured by Molex. There are two kind of plating that is Tin and gold plating, where the form can be Chain strip or Loose strip. This connector system offers many polarization features that ensure correct mating. This connector system also allows loading with optional polarization keys and pegs that ensures one way mating of headers and housings.
Compatible Products
Definium AMX700
Precision 500D
Robust, digital performance at an efficient dose
It starts with the imaging chain, which features a 12-bit CCD-based camera.Then there’s AutoEx, which automatically adjusts key image-acquisition parameters in real time for optimum quality. Meanwhile, closed-loop Automatic Brightness Control and patented extended Dynamic Range circuitry maintain contrast and minimize blooming.
