Membrane - Front Panel - PRN50

417921-001
Patient Monitoring
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • High quality front panel for printer
  • Non-tactile switches
  • Excellent temperature, chemical and UV resistant
  • Integrated yellow and green LED

Product Overview

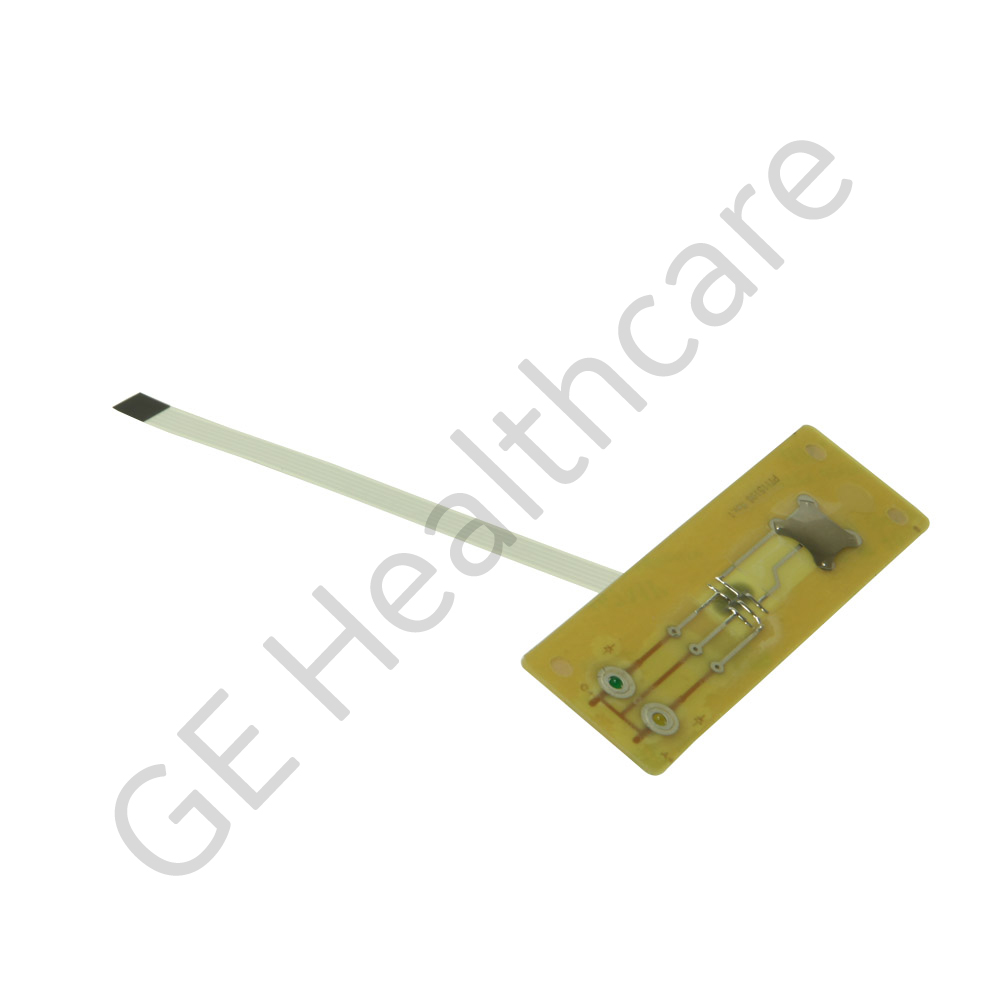

The Membrane Front Panel - PRN50 is a custom designed panel assembly intended for use in GE PRN 50 digital writer and other medical equipment as applicable. The front panel assembly is comprised of switch dome retainer, switch dome enclosure, Printed Circuit Board (PCB), PSA adhesive back label, yellow subminiature LED, green subminiature LED, 5 conductors flat flex cable and stainless steel dome. The dome is made up of a high quality polyester that has excellent temperature and chemical resistant properties, which makes it well suited for many medical applications. The integral flat flex cable is a standard ZIF cable and it is made with stiffeners at one end and is lasered at the other end. The products high quality material helps to offer reliable operation, efficient functioning and longer life span.
