Cable OTS User Interface (UIF) Locks Communication

2391020
X-Ray
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Good Conductivity
  • Easy To Connect Connectors At Both Ends
  • With Overmolding Protection
  • Reliable Operation

Product Overview

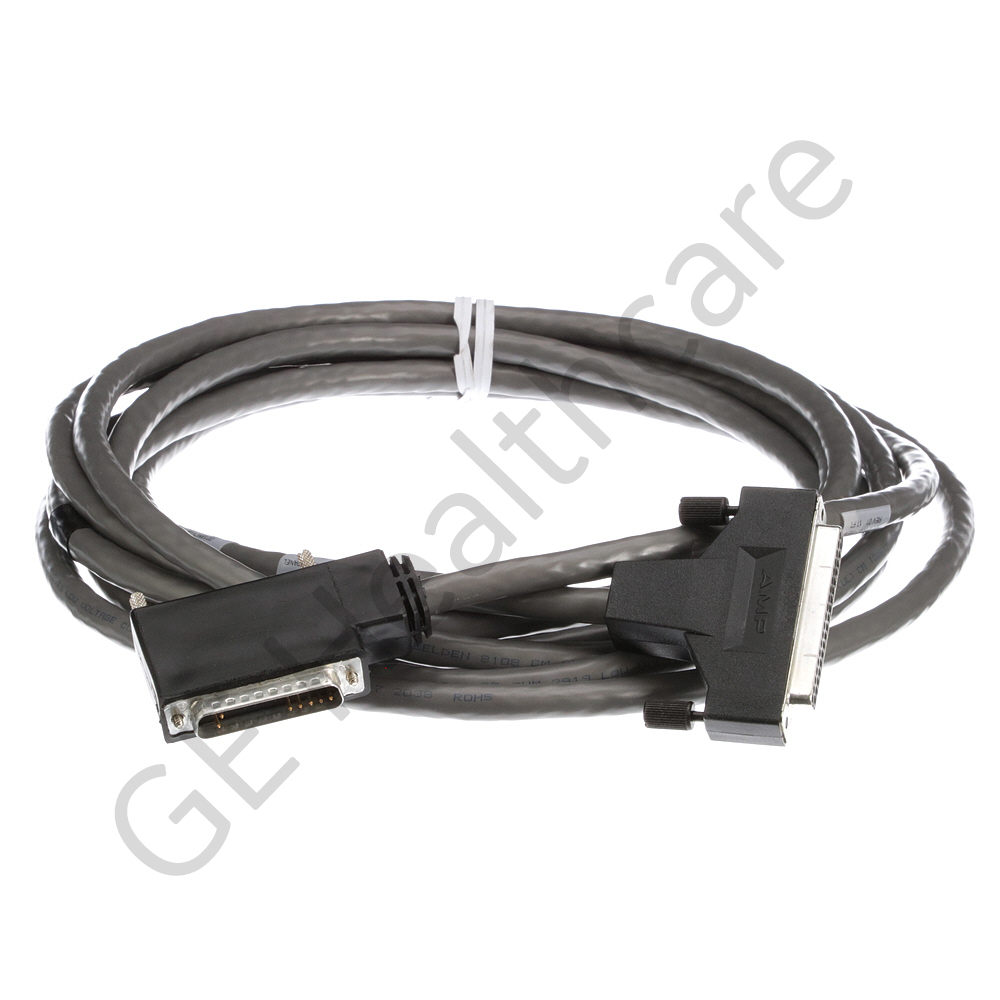

This cable assembly is used to interface the overhead tube suspension (OTS) console with the power supply panel which are used with GE's X-Ray Systems such as Proteus. This cable assembly comprises of a 37 position-2 row female D-sub connector at one end and a 25 position-2 row male D-sub connector at the other end interfaced using a 5180 mm long cable. The connector at end A is connected with the cable using tin ferrule and connector at end B is protected using black poly-vinyl chloride right angle overmolding. The connector contacts are gold plated which offers excellent conductivity, heat protection, enhance durability and exceptional corrosion protection. The cable assembly is properly insulated using gray colored poly-vinyl chloride jacket which resists electrical leakage and also protects the cable against environmental threats such as water and heat. For easy identification this cable assembly comes with two labels at the connector ends indicating the connecting ports.
