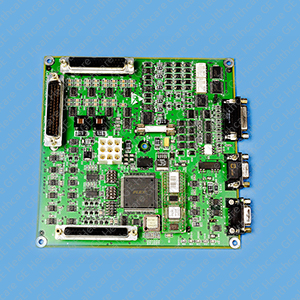

CAN Board Positioner Input/Output Printed Wire Assembly

2293142
X-Ray
GE Healthcare
Exchange - Return Defective
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Free from hazardous materials
  • Meets international standards for safety requirements
  • Electromagnetic Interference (EMI) protected
  • Environmental contaminant latex free materials used

Product Overview

The CAN Board Positioner Input/Output Printed Wire Assembly (PWA) is a custom designed circuit board that is used in the Aretha positioner cabinet and other X-ray systems as applicable. The primary function of the CAN positioner I/O board is to provide a signal and CAN communication interface between the positioner cabinet and other peripheral components. The CAN positioner I/O board assembly is comprised of various components including resistor, capacitor, fuse, logic interface, micro peripheral CAN open chip, Field Programmable Gate Array (FPGA), connectors, relays, voltage regulator, surface mount transient voltage suppressor, mounting screws and barcode label. The main functions of the CAN positioner I/O board is to provide communications link between the positioner cabinet and table to the CAN open standard bus Interface with the analog positioner, signal interface for the power assist CAN motion control amplifiers, interface with the legacy table and Spot Film Device (SFD) IDD sensors and switches. The board is mounted vertically against the back wall, inside the positioner cabinet. The maximum permissible board weight is 10 lb or 4.5 kg. The board must be braced to its grounded mounting plate by means of 4 screws or metallic fasteners positioned along the corners of the board and other pressure points. The CAN Positioner I/O board to meet the test, acceptance criteria for the vibration test, classical shock test, and shipping drop test as described in the mechanical environmental test guidelines.
