Rotor Capacitor Set - RoHS
| 2215674-2 | |
| 2215674 | |
| Computed Tomography (CT) | |
| GE HealthCare | Outright |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Durable
- Lightweight
- Corrosion resistant
- Easy to handle
Product Overview

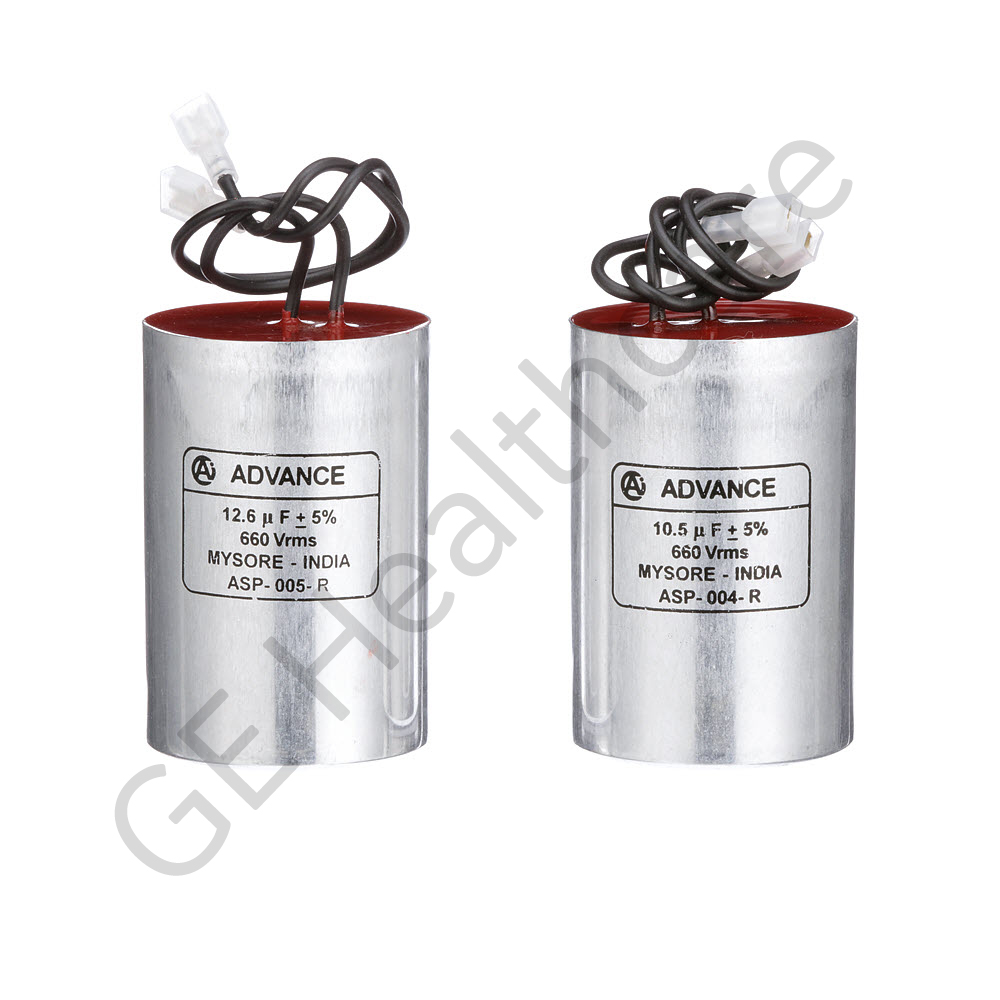

The Rotor Capacitor Set kit package is comprised of four Nylon 6.6 tie wraps of 292mm in length, and two individual plastic film capacitors of capacitance 12.6µF and 10.5µF respectively. This capacitors use a plastic film as a dielectric material and aluminum or zinc as an electrode to store an electric charge. In this kit, the capacitor casings are made up of a high quality aluminum can and sealed with epoxy resin. The dielectric material inside the capacitor is metalized polypropylene. The capacitor terminal lead wires are of a 1 square mm size and 200 mm length and are integrated with insulated female faston connectors to enable quick and easy termination. The capacitor stores electrical energy for use in electrical and electronic circuit applications.
Substitute Parts :
Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.
| Equivalent part | Part Details |
|---|---|
| 2215674 | Rotor Capacitor Set 23/23 |
