SVC KIT POWER SUPPLY

2080961-001
Maternal Infant Care
GE HealthCare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • 120 W Convection cooled ratings
  • Class I and Class II Construction
  • Remote Sensing on Main output
  • 12 V Main and 5 V Standby output

Product Overview

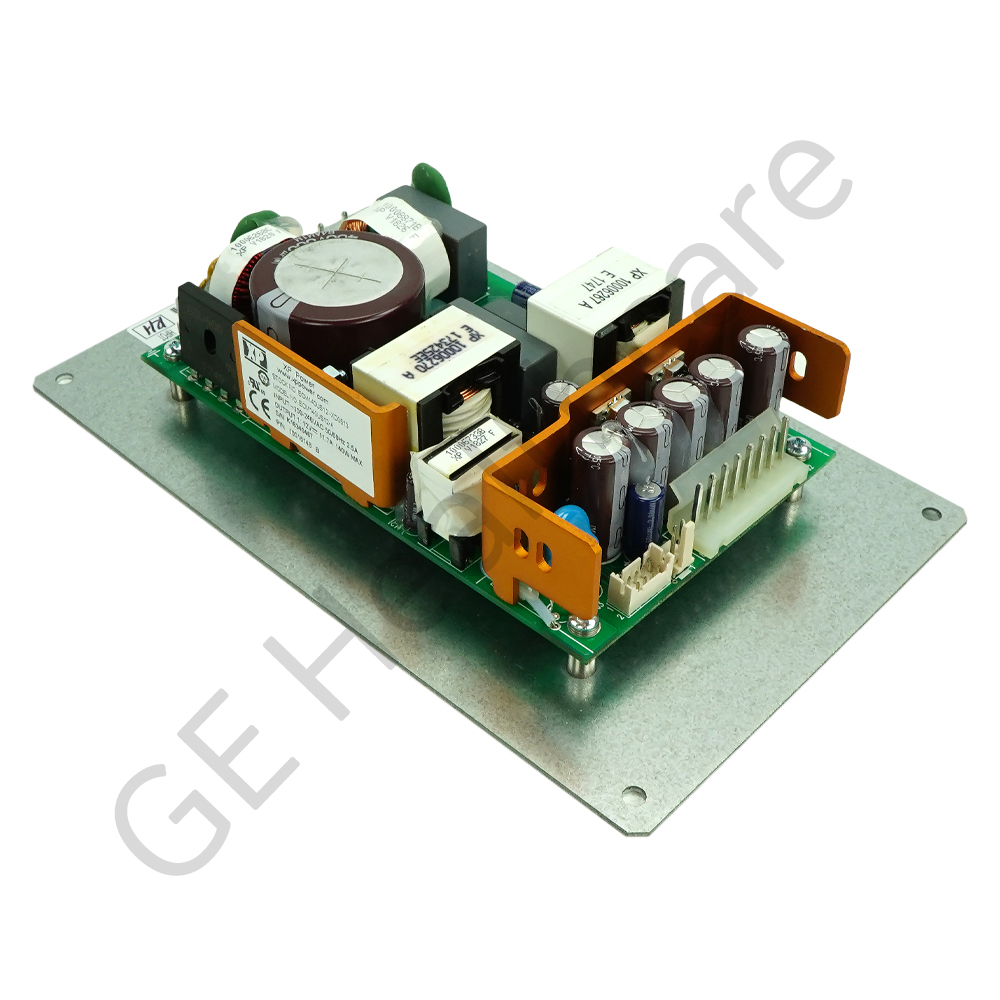

This assembly consists of a single output AC-DC Power Supply, an Adapter Bracket and Label. The power supply is a 120 W AC to DC power supply with a 12 VDC main and a +5 VDC standby output. It is an isolated power supply that is attached to 0.6 inch thick G30 steel adapter bracket, which accepts input between 80-264 VAC. The compact power supply relies upon convection cooling for heat dissipation so it can work reliably over a wide range of temperatures from 0 to 70 °C. This power supply is approved to EN60601-1, ANSI/AAMI ES60601-1, CSA22.2 No. 60601-1 per cUL, EN60950-1 and UL60950-1 (UL1604 Class 1 Div 2 ECM140US12) standards. This power supply is used with Giraffe Omnibed Carestation and Giraffe Incubator Carestation Maternal-Infant Care systems.
