Cable Assembly Serial RF Ablation Interface

2042214-001
Patient Monitoring
GE HealthCare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Multi-core 24 AWG cable assembly
  • Voltage rating 300V AC
  • Low voltage analog data transfer
  • Nine position (9P) male and Twenty five position (25P) female D-sub termination

Product Overview

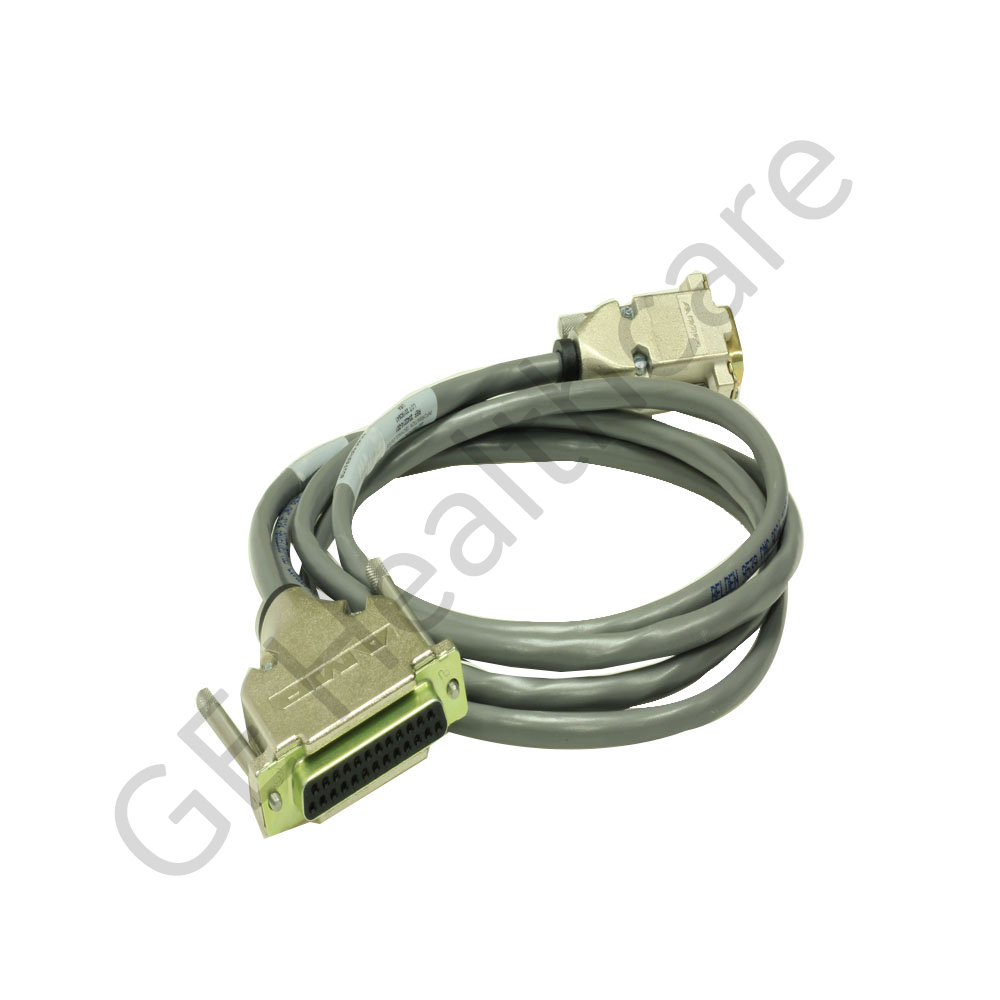

The Cable Assembly Serial RF Ablation Interface is a 9-conductor, 24AWG stranded (7 x 32) tinned copper cable with D-substandard 9 position plug at one end and D-sub housing receptacle 25 position at the other end. The cable has semi-rigid PVC insulation, overall Beldfoil® aluminum foil-polyester tape shield (100% coverage) and chrome PVC jacket. All the nine conductors are color-coded for easy identification. The contact receptacles are made up of high quality brass material that has an excellent durability property which makes it well suited for medical applications. It is highly reliable, durable and efficient. This comes as a part of XV Innova 2121 and MS TRAMRAC.
