Corometrics 250 Trim Knob & Switch
2025177-026
Maternal Infant Care
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Economical size
  • Optically coupled for more than a million cycles
  • Compatible with CMOS, TTL and HCMOS Logic Levels
  • Integral push button

Product Overview

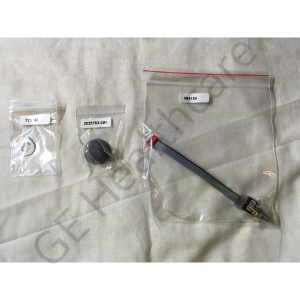

The Corometrics 250 FRU kit consists of a 16-position optical encoder, trim knob and a washer. This optical encoder is specifically designed for global positioning or driver information systems. It has optional integral pushbutton and compatible with CMOS, TTL and HCMOS logic levels. It is optically coupled for more than a million cycles. The pushbutton contact resistance is less than 10 ohms. This 16-position encoder comes along with a 4-Inch cable with the connector for termination. These switches have Quadrature 2-bit code output and an optional shaft actuated pushbutton switch. The trim knob is made up of advanced elastomer systems santoprene 201-55, which is a colorable thermoplastic general-purpose elastomer with good fluid resistance. It can be processed using injection molding, extrusion, blow molding or other melt processing techniques. A brass washer is provided to use with the encoder, thus acts as a switch hardware.

Compatible Products

Corometrics 250 Series

Corometrics 250 Series

Corometrics 250cx Series

Corometrics 250cx Series

Corometrics 256

Corometrics 256

Corometrics 259

Corometrics 259
