MGAS Power Supply Board for Fusion
1011-3178-000
Anesthesia Delivery
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Multiple output Board
  • Integrated LED indicators
  • Easy to Connect and Disconnect
  • Compact design

Product Overview

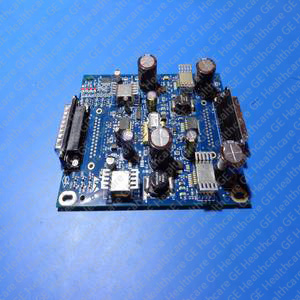

This is a power supply board which converts DC input voltage into required DC voltages. This board is powered with 11.7 to 12.7 VDC input and provides +5 VDC, two +15 VDC and -15 VDC outputs. These four voltages are run through LDO (Low Dropout) regulators to meet required accuracy and to protect the 12.5 V bus from short circuits. The circuit board comes with two outside world connectors. One connector connects to the Fusion display connector board and other directly plugs into MGAS. This bard also passes the 485 communication signals between the Fusion to the MGAS monitor. The board uses convection cooling for thermal management and is featured with red color LEDs for indicating undervoltage in any of the four outputs. This power board can be used with Avance Anesthesia Delivery System.

Compatible Products

Aisys

Aisys
