PCA Acrylonitrile Butadiene Styrene Filter Board
1009-3007-000
Anesthesia Delivery
GE Healthcare
Outright
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Anti-static field packaging for ESD sensitive materials
  • Durable and reliable
  • Scratch resistant labels are provided with legible information about the product
  • RoHS compliant

Product Overview

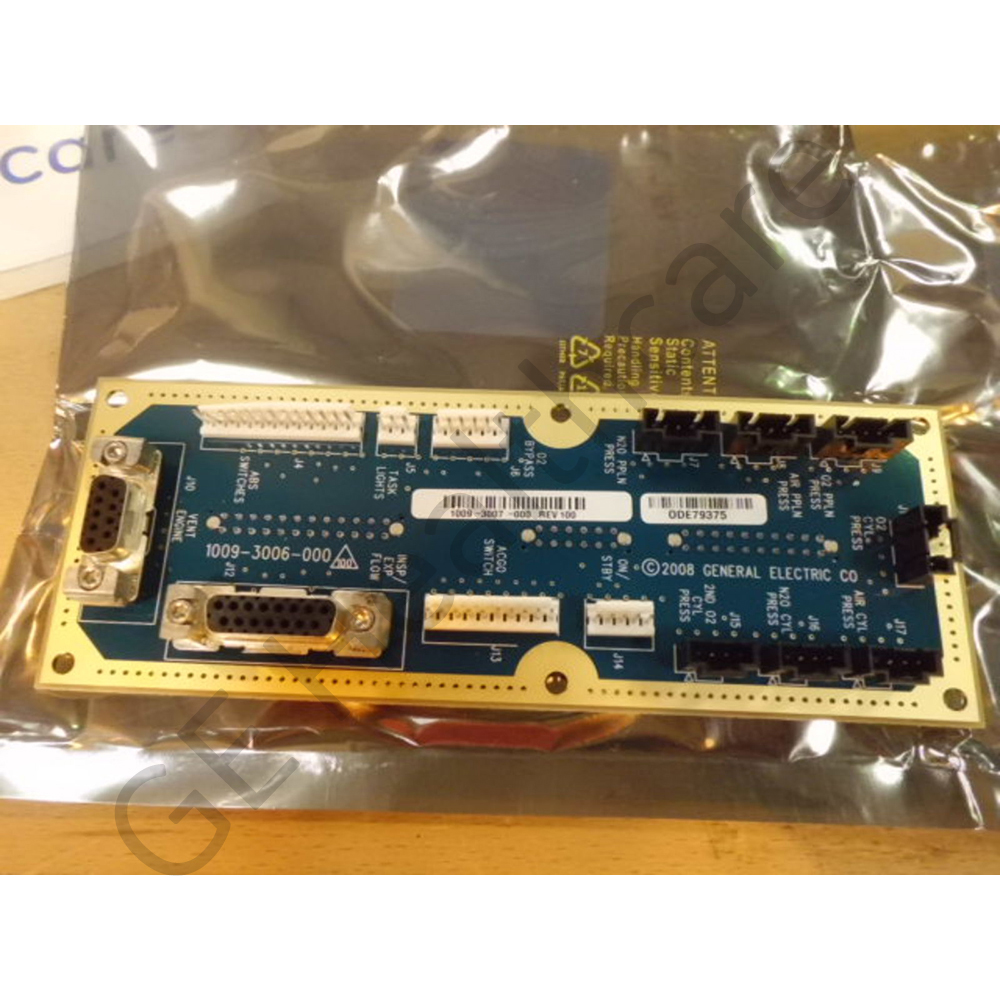

  • The Printed Circuit Assembly (PCA) comes as a part of the Anesthesia Delivery System. It consists of the Printed Circuit Board (PCB) to connect the components electrically to the unit and a filter board. The bottom side of the filter board is a solid plane with an unmasked boarder which, when mounted into the metal enclosure is a continuation of the shield. Signals that pass from the shielded electrical enclosure to one of the outside world connectors are filtered to prevent emissions out of or into the enclosure. The board consists of 3 connectors on its topside, 2 of which connect to the Pan Connector Board and the other connects to the Ventilator Interface Board (VIB). The bottom of the board consists of integral cables, which connect to various Transducers O2, N2O and air cylinder pressure, air pipeline pressure Transducer, bypass and On-Standby switches and vent engine. It is provided as a part of medical equipment like S/5 Avance and S/5 Aisys Anesthesia Delivery Systems.

Compatible Products

Aisys

Aisys

Avance

Avance
